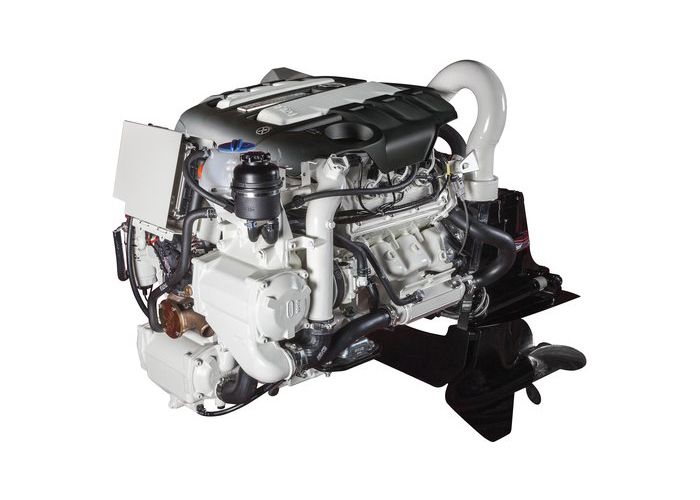

Compact and Efficient
High-power density in a compact lightweight package.
Power mhp / kW 260 / 191
Maximum RPM (WOT) 4000
Engine type V-6
Displacement (L) 3.0
Weight (engine only) 675 lbs / 306 kg
Power mhp / kW | 260 / 191 |
Bore and stroke | 3.27 x 3.58" / 83 X 91 mm |
Maximum RPM (WOT) | 4000 |
Engine type | V-6 |
Displacement (L) | 3.0 |
Weight (engine only) | 675 lbs / 306 kg |
Weight (incl. transmission) | 771 lbs / 350 kg |
Weight - Bravo One | 906 lbs / 411 kg |
Weight - Bravo Two | 922 lbs / 418 kg |
Weight - Bravo Three | 933 lbs / 423 kg |
Dimensions (L x W x H) | 35 x 32 x 34" / 927 x 813 x 853 mm |
Cooling system | Closed cooling |
Fuel consumption | 14.2 gal/hr / 53.7 l/hr @ 4000 rpm |
Compatible drives | Bravo One Bravo Three Bravo Two |
Emission | BSO 2 RCD 2 IMO 2 EPA Tier 3 |
Power mhp / kW | 230 / 169 |
Bore and stroke | 3.27 x 3.58" / 83 X 91 mm |
Maximum RPM (WOT) | 4000 |
Engine type | V-6 |
Displacement (L) | 3.0 |
Weight (engine only) | 675 lbs / 306 kg |
Weight (incl. transmission) | 771 lbs / 350 kg |
Weight - Bravo One | 906 lbs / 411 kg |
Weight - Bravo Two | 922 lbs / 418 kg |
Weight - Bravo Three | 933 lbs / 423 kg |
Dimensions (L x W x H) | 35 x 32 x 34" / 927 x 813 x 853 mm |
Cooling system | Closed cooling |
Fuel consumption | 12.6 gal/hr / 47.7 l/hr @ 4000 rpm |
Compatible drives | Bravo One Bravo Three Bravo Two |
Emission | BSO 2 RCD 2 IMO 2 EPA Tier 3 |
Power mhp / kW | 150 / 110 |
Bore and stroke | 3.27 x 3.58" / 83 X 91 mm |
Maximum RPM (WOT) | 3300 |
Engine type | V-6 |
Displacement (L) | 3.0 |
Weight (engine only) | 675 lbs / 306 kg |
Weight (incl. transmission) | 771 lbs / 350 kg |
Weight - Bravo One | 906 lbs / 411 kg |
Weight - Bravo Two | 922 lbs / 418 kg |
Weight - Bravo Three | 933 lbs / 423 kg |
Dimensions (L x W x H) | 35 x 32 x 34" / 927 x 813 x 853 mm |
Cooling system | Closed cooling |
Compatible drives | Bravo One Bravo Three Bravo Two |
Emission | BSO 2 RCD 2 IMO 2 EPA Tier 3 |
